491110 Drawbolt

The 491110 Drawbolt latch provides a heavy-duty draw action to many applications. The high hole position in the top prevents the rivets from splitting the beveled edge of a wood case. Use this steel latch to replace screws and secure your box lid in a stately way. Open the spec sheet to see item details. Shop drawbolt case latches for sale at Allen Field today!

We also offer a Lockable Draw Latch.


Category: Drawbolts
Size: 3.465”(L) x 1.906”(W)
Material: Steel


491110-BP – Brass Plated
491110-NP – Nickel Plated

Download Spec Sheet: 491110 Drawbolt

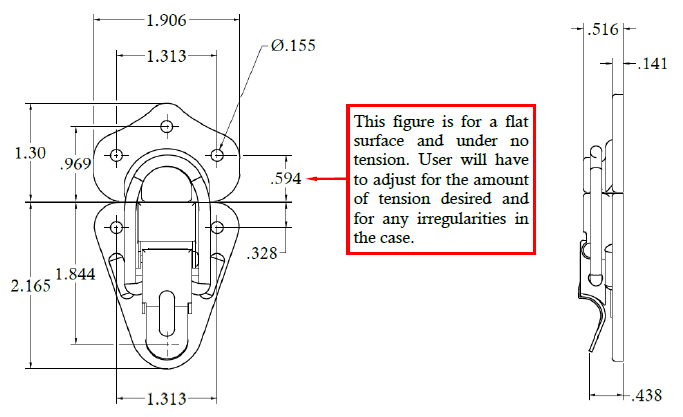

Product Dimensions

product specification

Call (631) 665-2782

or Submit the Form Below to Speak with a

Drawbolt Specialist

product specification
Request A Quote
