PP902T Pinza de conexión de caja de doble pared con cierre giratorio

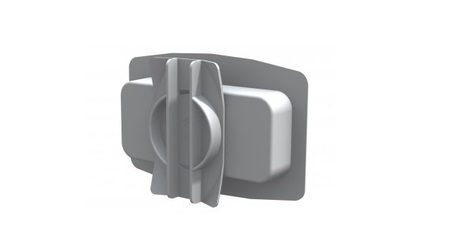

Do you need a simple and brilliant way to fasten your corrugated tray and sleeve packaging design? Our PP902T locks together the two panels and helps eliminate the need for trapping or staples. Installation is easy and fast. Simply insert the clip through the panels via corresponding cutouts, then grasp the front crosspiece to turn and lock it into place. As the back paddle turns upright, it compresses to join the boards to provide a tight fit with additional security. To detach the joined corrugated boards, turn to unlock the clip and remove it from the packaging in just a few seconds. The PP902T is ideal for situations where there is minimal clearance inside the box to deploy the typical paddle-style connectors.
Allen Field is a global supplier of biodegradable packaging components. Our box connecting clips are enhanced with the Aditivos Eco-One, providing sustainable solutions for many applications.
DESCRIPCIÓN DEL PRODUCTO
Nombre del artículo: | Turn-Lock Double-Wall Box Connecting Clip |
Tamaño: | 4.32″(W) x 2.83″(H) |
Espesor máximo del tablero: | 0.65" |
(Tenga en cuenta que, debido a la flexibilidad tanto del plástico como del cartón ondulado, es posible que se supere el grosor máximo del panel. Hable con nosotros hoy mismo si tiene alguna duda). | |
Material: | PP |
INFORMACIÓN PARA PEDIDOS
PP902T – Translucent
INFORMACIÓN DE ENVASADO
Paquete de cartón/MOQ: | 250 pcs/ctn. |
Peso de la caja: | 18 libras. |
PRODUCTOS RELACIONADOS
Solicitar hoja de especificaciones:
PP902T Pinza de conexión de caja de doble pared con cierre giratorio

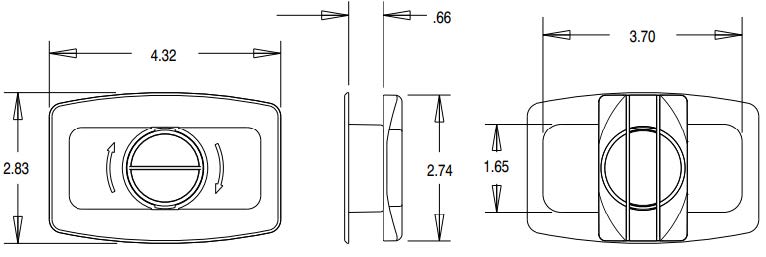

Dimensiones del producto

Die-Cut Dimensions (Type 2)

![]() |
