5503X Double Pin Shelf Lock™ Support

Shelf Lock™ Support secures a cabinet shelf and prevents movement and damage during construction and shipping. The 55# series is our customer favorite. The 5503X Double Pin Shelf Lock™ Supports feature a .20″ hole diameter and secure shelves of 3/4″ or 1″ thick. A set of four holds up to 300 lbs. of weight. The 55031 is white, and the 55036 is clear. Translucent and custom colors also available on request. For more details, download the spec sheet. If you need a .25″ hole diameter, check out the 5501X.


PRODUCT DESCRIPTION

Item Name: Double Pin Shelf Lock™ Support
Shelf Thickness: 0.75” or 1.00”
Product Size: 1.00”(W) x 2.375”(H)
Peg Size: 0.20”(ø), 0.32”(L)
Peg Type: Hexagon, Smooth
Material: Polycarbonate

ORDERING INFORMATION

55031 – White
55036 – Clear

PACKAGING INFORMATION

Carton Pack/MOQ: 1250 pcs/ctn.
Carton Weight: 17 lbs.

RELATED PRODUCTS

5501X Series

Download Spec Sheet: 5503X Double Pin Shelf Lock™ Support

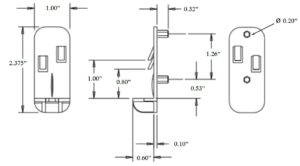

Product Dimensions
