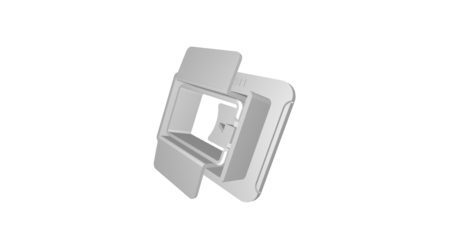

HP511 Double-Wall Box Connecting Clip

Allen Field’s Box Connecting Clips can help eliminate the need for strapping, staples, or box cutters and reduce wear and tear of the corrugated packaging. This, then allows the boxes to be reused multiple times. Our HP511 Box Fastener connects double-wall corrugated boards and makes access to the box contents faster and easier. Made from PP material, this product is durable and reusable.

Did you check the flute size of your packaging material before getting the clip? Download the Box Connecting Clip Selection Guide.

Allen Field is a global supplier of biodegradable packaging components. Our box connecting clips are enhanced with the Eco-One® additives, providing sustainable solutions for many applications. Contact us now to kick-start the process of making your packaging eco-friendly!


Item Name: Double-Wall Box Connecting Clip
Size: 2.38″(W) x 2.00″(H)
Maximum Board Thickness: 0.58”
(Please note that due to flexibility in both plastic and corrugated, maximum panel thickness may be exceeded. Speak with us today with any questions you may have.)
Material: PP


HP511.05 – Translucent

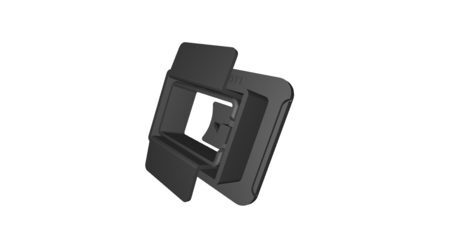

HP511.80 – Black


Carton Pack/MOQ: 700 pcs/ctn.
Carton Weight: 28 lbs.


HP601W Double-Wall Clip

PDFRequest Spec Sheet: HP511 Double-Wall Box Connecting Clip

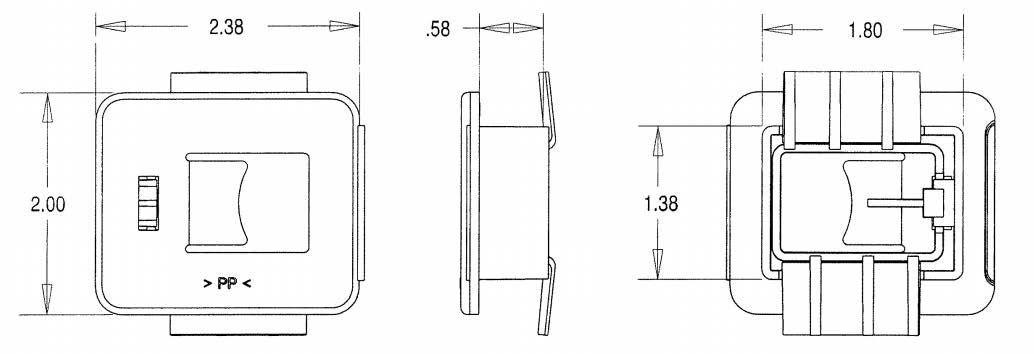

Product Dimensions

product specification

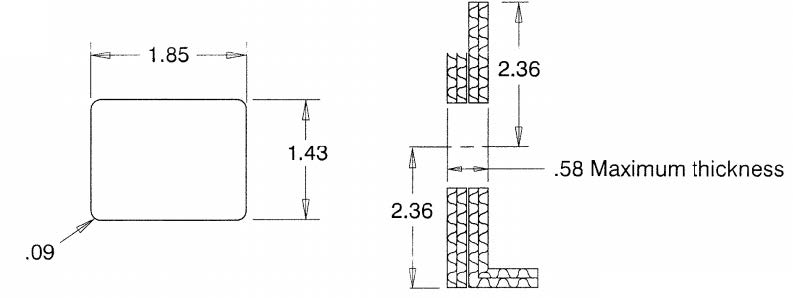

Die-Cut Dimensions (Type 1)

product specification
