HP602W Double-Wall Box Connecting Clip

Looking for a sophisticated plastic component that provides easy unpackaging and repacking; and can help streamline your packaging process? Designed for securing double-wall corrugated boards, the HP602W is easy to install and remove via a simple cutout on the box, ideal for products that require frequent opening and reclosing along supply chain. Say goodbye to tape strappings and staples. Create efficient packaging with the HP602W!

We provide biodegradable plastic products to align with your sustainable goals. Our box connecting clips are enhanced with the Eco-One® additives, providing sustainable solutions for many applications.


Item Name: Double-Wall Box Connecting Clip
Size: 3.00″(W) x 1.90″(H)
Maximum Board Thickness: 0.65”
((Please note that due to flexibility in both plastic and corrugated, maximum panel thickness may be exceeded. Speak with us today with any questions you may have.)
Material: PP

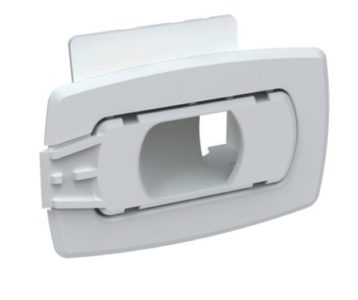

HP602W – Translucent

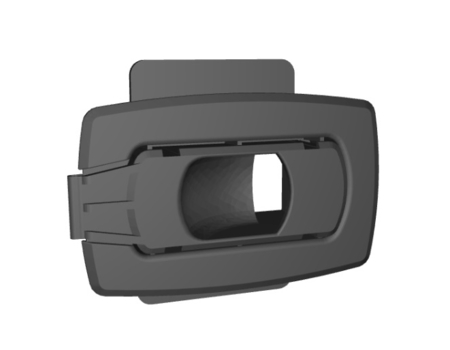

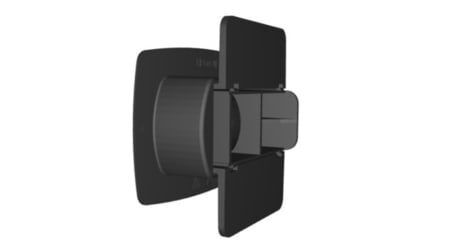

HP602W-80 – Black


Carton Pack/MOQ: 500 pcs/ctn.
Carton Weight: 25 lbs.


HP603 Fixed Paddle Interlock Clip

PDFRequest Spec Sheet: HP602W Double-Wall Box Connecting Clip

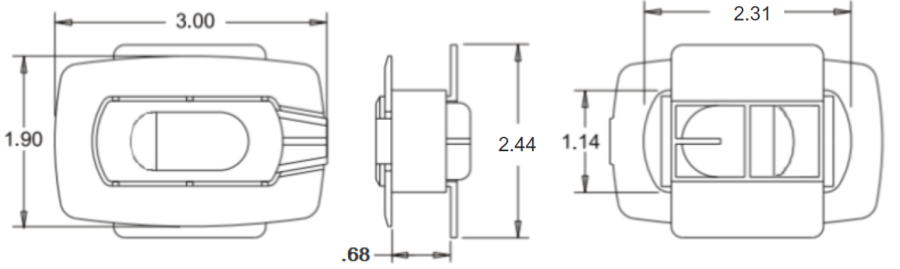

Product Dimensions

product specification

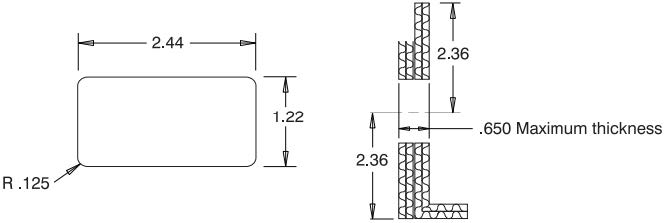

Die-Cut Dimensions (Type 1)

product specification
