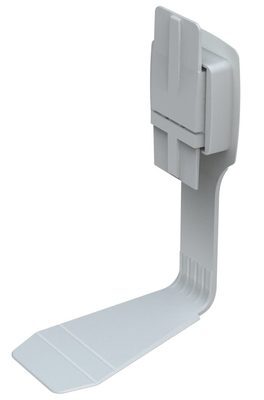

PP400WL Base Skid Joint Single-Wall Box Connecting Clip

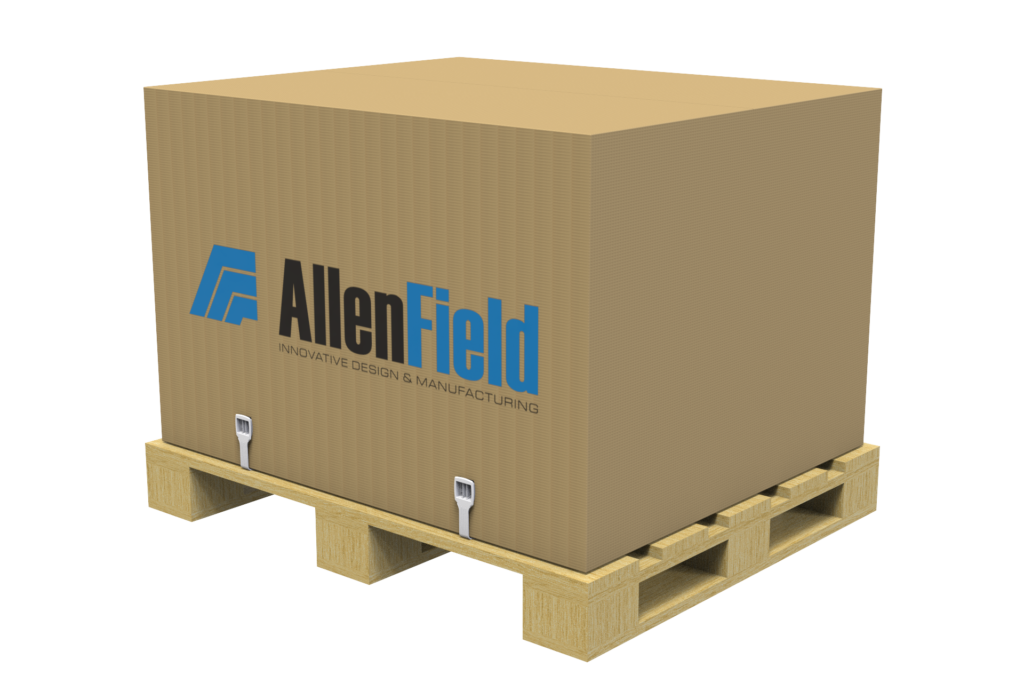

Attach the protective corrugated cover directly to the pallet without strapping using our PP400WL connecting clip!

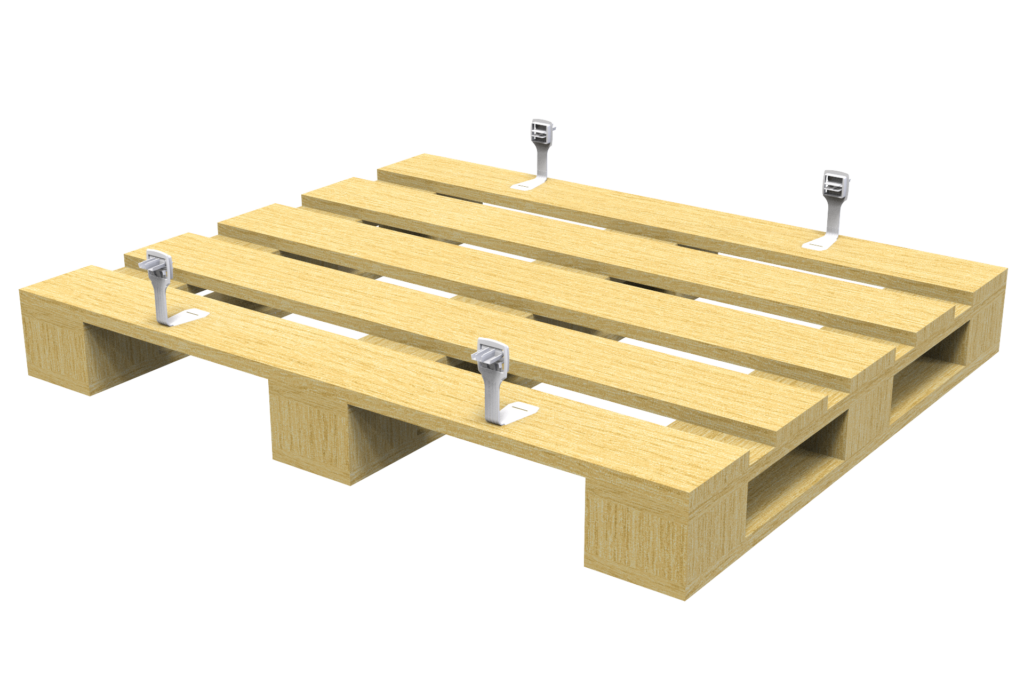

When you need non-structural protection for a palletized product, sometimes the best option is an outer corrugated cover with an open bottom. A cover can keep inner protective packaging in place while keeping out dirt and dust. The PP400WL Base Skid Joint is an innovative box clip that joins a corrugated box to a wooden pallet. It staples to the pallet deck on one end and locks into the corrugated box through a simple die-cut on the other, eliminating the need for strapping. As with all of Allen Field’s connecting clips, this product facilitates easy and repeated access to the product inside if needed.

Allen Field is a global supplier of biodegradable packaging components. Our box connecting clips are enhanced with the Eco-One® additives, providing sustainable solutions for many applications. Contact us now to kick-start the process of making your packaging eco-friendly!


Item Name: Base Skid Joint Single-Wall Box Connecting Clip
Size: 1.87″(W) x 4.90″(H)
Maximum Board Thickness: 0.38”
(Please note that due to flexibility in both plastic and corrugated, maximum panel thickness may be exceeded. Speak with us today with any questions you may have.)
Material: PP


PP400WL – Translucent


Carton Pack/MOQ: 500 pcs/ctn.
Carton Weight: 20 lbs.

PDFRequest Spec Sheet: PP400WL Base Skid Joint Single-Wall Box Connecting Clip

Product Dimensions

product specification

Die-Cut Dimensions (Type 1)

product specification
