BC600 Rotary Locking Box Connecting Clip

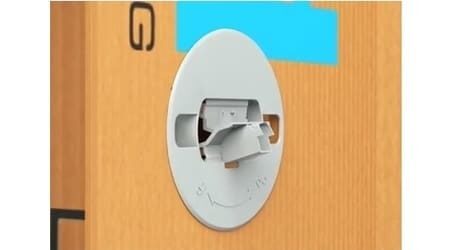

The Rotary Locking Clip is an interlock for corrugated packaging, point of sale, and industrial applications. It joins two pieces of corrugated boards and makes closing and reopening the box a breeze. Insert the clip into the corrugated walls from the outside of the box via simple cutouts, then turn it to lock into place. To detach the joining parts, unlock the clip and remove it from the cutouts in just a few seconds. The Rotary Locking Clip is 100% reusable and allows you to reuse your box again and again.

Did you know? Allen Field is a global supplier of biodegradable packaging components. Our box connecting clips are enhanced with the Eco-One® additives, providing sustainable solutions for many applications. Contact us now to kick-start the process of making your packaging eco-friendly!


Item Name: Rotary Locking Box Connecting Clip
Size: 4.50” Diameter
Maximum Board Thickness: 0.35”
(Please note that minimums and maximums are approximations. Speak with us today with any questions you may have)
Material: PP


BC600-2-05 – Translucent


Carton Pack/MOQ: 250 pcs/ctn.
Carton Weight:  16 lbs.


HP602W-10mm Single-Wall Clip

PDFDownload Spec Sheet: BC600 Rotary Locking Box Connecting Clip

Product Dimensions

product specification

Die-Cut Dimensions (Type 2)

product specification
