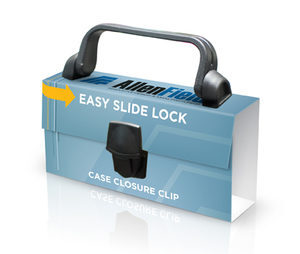

Easy Slide Lock TK9017

The Easy Slide Lock is one of our customers’ favorites in the plastic case locks. Designed with a click-and-lock backplate, this case lock can maximize the assembly accuracy while minimizing the processing time. The TK9017 provides easy closing and opening to cases of .04″ to .06″ thick. We also have the TK9023 for thicker case materials.


PRODUCT DESCRIPTION

Item Name: Easy Slide Lock
Part number: TK9017
Size: 1.59” (L) x 1.00”(W)
Carton Thickness: 0.04” – 0.06”
Material: POM

ORDERING INFORMATION

.10 – White
.80 – Black

PACKAGING INFORMATION

Carton Pack/MOQ: 2000 pcs/ctn.
Carton Weight: 32 lbs.

RELATED PRODUCTS

Snap Lock

Easy Slide Lock TK9023

Download Spec Sheet: Easy Slide Lock TK9017

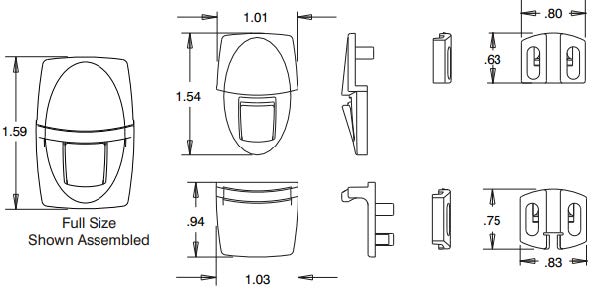

Product Dimensions

product specification

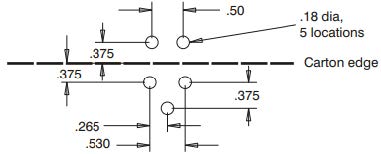

Die-Cut “V” Dimensions

product specification
