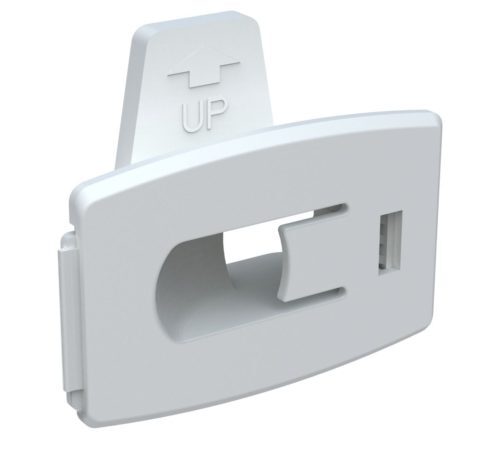

HP603 Fixed Paddle Double-Wall Box Connecting Clip

The HP603 secures double-wall boards up to 0.65″ thick. Featured with a fixed paddle, this clip eliminates any gaps between the corrugated walls by pulling tight the inner and outer panels of the packaging. An up arrow sign is also optional for a need to indicate the direction. Click here to view the simple installation steps. This product is protected by patent in the United States and elsewhere. For more information visit /patents/.

Did you check the flute size of your packaging material before getting the clip? Download theBox Connecting Clip Selection Guide.

We provide biodegradable plastic products to align with your sustainable goals. Our box connecting clips are enhanced with the Eco-One® additives, providing sustainable solutions for many applications. Contact us now to kick-start the process of making your packaging eco-friendly.


PRODUCT DESCRIPTION

Item Name: Fixed Paddle Double-Wall Box Connecting Clip
Size: 3.00″(W) x 1.96″(H)
Maximum Board Thickness: 0.65”
(Please note that minimums and maximums are approximations. Speak with us today with any questions you may have)
Material: PP

ORDERING INFORMATION

HP603 – Translucent
HP603-80 – Black
HP603.80.A00 – Black with Up Arrow

PACKAGING INFORMATION

Carton Pack/MOQ: 400 pcs/ctn.
Carton Weight: 23 lbs.

RELATED PRODUCTS

HP601S Fixed Paddle Connecting Clip

PDFDownload Spec Sheet: HP603 Fixed Paddle Double-Wall Box Connecting Clip


Product Dimensions

product specification

Die-Cut Dimensions (Type 1)

product specification
